Emulsified Bitumen: A Sustainable Solution for Modern Road Construction

Bitumen is a vital material in the road construction and civil engineering industries. Its adhesive and waterproofing properties play a key role in building and maintaining durable surfaces. Alongside cutback bitumen, which is thinned with petroleum solvents, emulsified bitumen (also known as asphalt emulsion) has gained increasing importance as a more environmentally friendly alternative with diverse applications. This article provides a comprehensive overview of emulsified bitumen, exploring its cationic and anionic types, various grades and technical specifications, applications, and significant advantages compared to cutback bitumens.

Emulsified bitumen is a fine dispersion of bitumen particles in an aqueous phase, stabilized by an emulsifying agent. This process allows bitumen to be in a liquid, sprayable form at ambient temperatures (or with minimal heating), eliminating the need for volatile petroleum solvents. After application, the water evaporates, and the bitumen particles coalesce to form a uniform, adhesive layer of pure bitumen. The emulsion breaking rate (the separation of water from bitumen) is the primary factor in classifying emulsified bitumens.

Advantages of Using Emulsified Bitumen

The use of emulsified bitumen offers numerous benefits, making it a preferred choice for civil engineering projects:

• Reduced Environmental Pollution: The most significant advantage is the elimination or drastic reduction of Volatile Organic Compound (VOC) emissions, as no petroleum solvents are used in its production. This makes emulsified bitumen a green and environmentally friendly option.
• Enhanced Safety: By eliminating flammable solvents, the risk of fire and explosion during production, transportation, storage, and application is significantly reduced.
• Low-Temperature Application: These bitumens can be applied even at ambient temperatures, which removes the need for high heating and results in energy savings.
• Ease of Application: Their low viscosity at ambient temperatures facilitates spraying and mixing with aggregates.
• Excellent Adhesion: Emulsified bitumens adhere well to damp aggregate surfaces.
• Cost-Effectiveness: Due to reduced heating costs, energy savings, and compliance with safety requirements, they can be an economical option.
• Versatility in Application: From surface dressings and prime coats to cold mix asphalt and soil stabilization, emulsified bitumens cover a wide range of applications.

Classification of Emulsified Bitumen: Cationic and Anionic

Emulsified bitumens are primarily divided into two main groups based on the electrical charge of the emulsifying agent (stabilizer): cationic and anionic. The choice of emulsion type depends on the electrical charge of the aggregates used. Aggregates typically have a negative charge.

1. Cationic Emulsified Bitumen

In this type of emulsion, bitumen particles carry a positive charge (+), and cationic emulsifying agents are used for stabilization. Due to the positive charge of the bitumen particles, this type of emulsion exhibits a strong tendency to adhere to aggregate surfaces, which typically have a negative charge. This characteristic leads to very strong and rapid adhesion with most aggregates, even if they are slightly damp. Consequently, cationic emulsified bitumens are widely used in road construction.

2. Anionic Emulsified Bitumen

In anionic emulsified bitumens, the bitumen particles carry a negative charge (-), and anionic emulsifying agents are used for stabilization. This type of emulsion performs better with positively charged aggregates, although most natural aggregates are negatively charged. Therefore, when used with common aggregates, auxiliary agents or surface modification may be required to achieve optimal adhesion. The breaking time (separation of bitumen from water) in anionic emulsions is typically longer than in cationic ones.

Classification of Emulsified Bitumen by Breaking Rate

Each of the cationic and anionic groups is further divided into four categories based on the emulsion’s breaking rate:

• QS (Quick-Setting): These emulsions break quickly, and the bitumen rapidly separates from the water. This property makes them ideal for applications requiring rapid traffic opening.
  • Applications: Surface dressings (chip seals), spray applications (tack coats).
• RS (Rapid-Setting): Their breaking speed is slightly slower than QS, but they are still suitable for fast applications.
  • Applications: Surface dressings, chip sealing, tack coats.
• MS (Medium-Setting): These emulsions require more time to break, allowing for better mixing with aggregates.
  • Applications: Plant mix cold asphalt, emulsion-stabilized mixtures.
• SS (Slow-Setting): SS emulsions have the slowest breaking rate, providing a longer working time. This characteristic makes them suitable for mixing with graded aggregates and soil stabilization.
  • Applications: Road mix cold asphalt, soil stabilization, prime coats in some cases.

Technical Specifications of Emulsified Bitumen

The technical specifications of emulsified bitumens are defined in various standards, such as ASTM and AASHTO. These specifications include:

• Viscosity: The fluidity of the emulsion, which affects its sprayability and penetration. (Typically measured by Saybolt Furol viscosity at specified temperatures.)
• Residue Bitumen: The weight percentage of pure bitumen in the emulsion after water evaporation. A higher value indicates more pure bitumen content and lower water transportation costs.
• Storage Stability: The emulsion’s stability against phase separation during storage.
• Sieve Test: Determines the amount of large bitumen particles or bitumen clusters in the emulsion, which can indicate its stability and quality.
• Properties of Evaporated Residue: The properties of the pure bitumen remaining after water evaporation (such as penetration, ductility, softening point), which indicate the final quality of the bitumen layer.
• Water Content: The percentage of water in the emulsion.

Table 1: General Technical Specifications of Cationic Emulsified Bitumen

Table 2: General Technical Specifications of Anionic Emulsified Bitumen

Applications of Emulsified Bitumen in Road Construction Projects

Due to their versatility and environmental benefits, emulsified bitumens are used in a wide range of road construction applications:

• Surface Dressing / Chip Seal: This method involves spraying bitumen emulsion (usually QS/RS) followed by aggregate spreading, creating a protective and anti-skid layer.
• Tack Coat: Spraying a thin layer of emulsion (usually QS/RS) to create adhesion between different asphalt layers or between asphalt and an existing surface.
• Prime Coat: Spraying emulsion (usually SS) onto granular base layers to penetrate, stabilize loose particles, provide initial waterproofing, and improve adhesion with the subsequent asphalt layer.

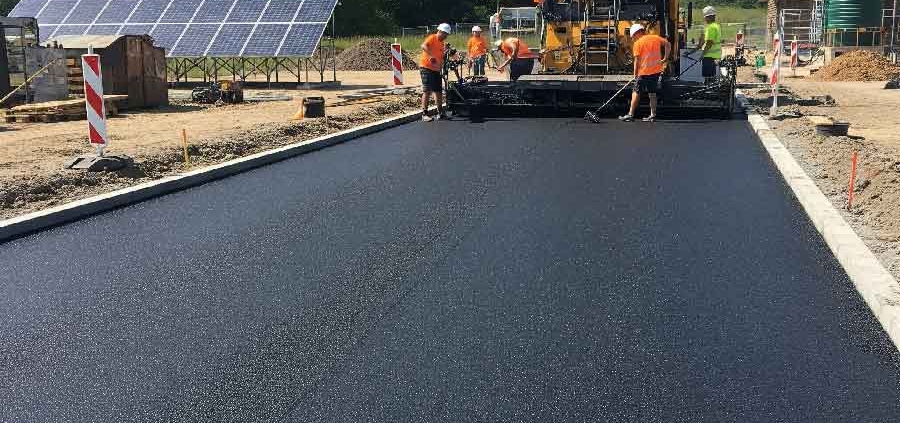

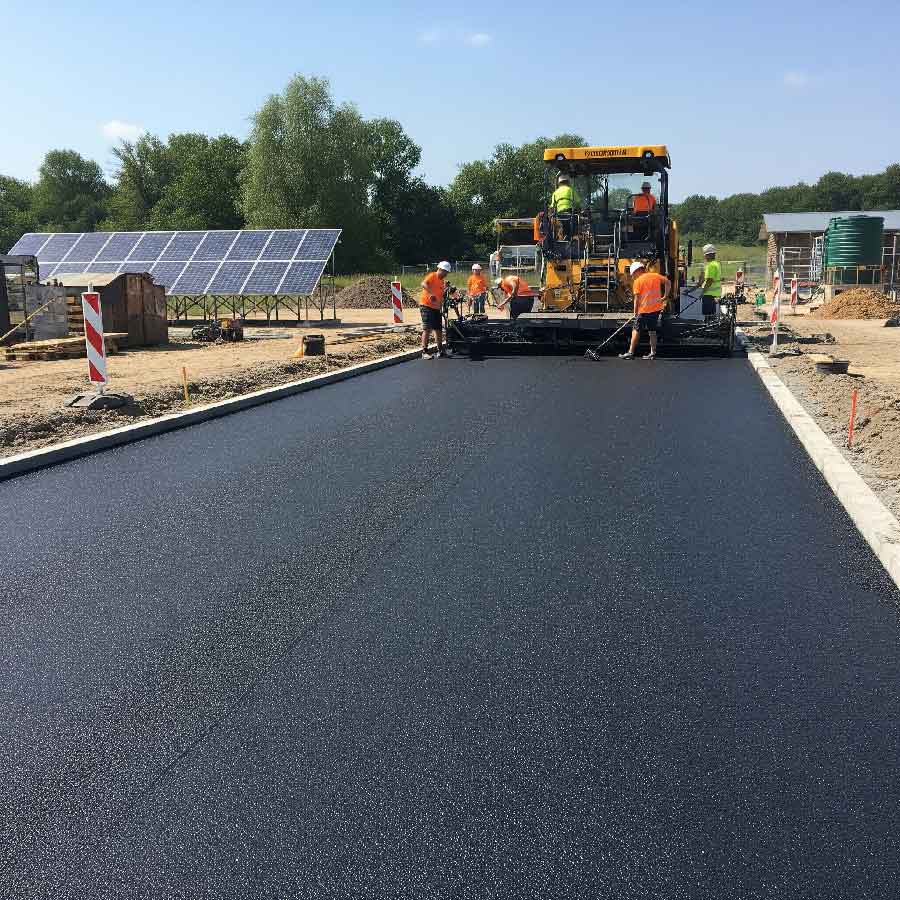

• Cold Mix Asphalt: Producing asphalt mixtures at ambient temperatures using emulsions (MS/SS), suitable for secondary roads, pothole repairs, and low-volume overlays.
• Pavement Recycling: Using emulsion in cold pavement recycling processes, where old asphalt materials are mixed with emulsion and reused.
• Soil Stabilization: Mixing SS emulsions with weak soils to improve their strength and stability properties.
• Dust Palliative: Using diluted emulsions to control dust on unpaved roads.

Comparison with Cutback Bitumen and Future Considerations

Compared to cutback bitumens, emulsified bitumens offer significantly higher environmental sustainability and safety due to the elimination of petroleum solvents. While cutback bitumens are still used in some specific applications or regions with fewer environmental restrictions, the global trend is towards replacing them with bitumen emulsions.

Future considerations in the bitumen industry will focus on developing higher-performance emulsions, increasing their stability, and improving their mechanical properties. Advances in emulsifier formulation and production methods can help expand the range of applications and efficiency of these materials. Selecting the appropriate grade of bitumen emulsion, similar to cutback bitumens, requires careful consideration of climatic conditions, aggregate type, application type, and project technical and environmental requirements. Engineers and specialists must possess sufficient knowledge of the technical specifications and applications of each group and grade to make the best choice for achieving sustainable and durable infrastructure.
